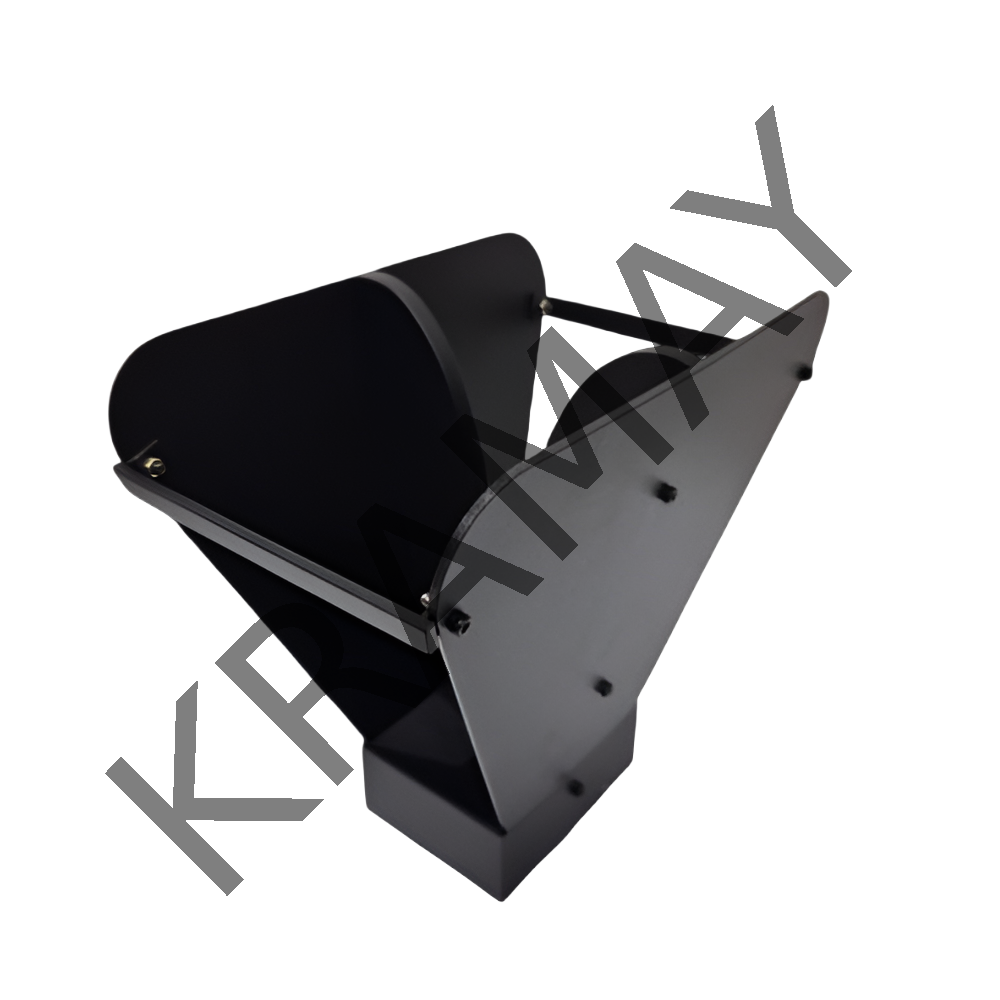

Dual Ridge Horn Antennas
The Dual-Ridged Waveguide Horn Antennas Feature Linearly Polarized, Broadband Designs That Operate Across a Frequency Range Of 100 Mhz To 40 Ghz. Originally Developed For Emi Measurements And Compliance Testing, These Antennas Are Also Well-Suited For a Variety Of Other Applications, Including Antenna Gain And Pattern Measurements, Surveillance, Automotive Testing, And Military Emc Immunity Evaluations.
The List Below Is Intended As a Representative Sample Rather Than An Exhaustive Catalogue Designed To Accommodate Specific Application Needs. As With All Kramay Products, Custom Designs And Modifications With Different Connector Options Are Available To Meet Unique Customer Requirements.
| Model | Start Frequency | Stop Frequency | Vswr (Typ) | Gain (Typ) |
|---|---|---|---|---|
| 1101 | 100 Mhz | 1 Ghz | 2:1 | 6 – 12 Dbi |
| 1102 | 200 Mhz | 1 Ghz | 2:1 | 6 – 12 Dbi |
| 1103 | 400 Mhz | 6 Ghz | 2:1 | 5 – 12 Dbi |
| 1104 | 800 Mhz | 6 Ghz | 2:1 | 8 – 12 Dbi |
| 1105 | 1 Ghz | 18 Ghz | 2:1 | 4 – 15 Dbi |
| 1106 | 1 Ghz | 18 Ghz | 2:1 | 2 – 15 Dbi |
| 1107 | 18 Ghz | 40 Ghz | 2:1 | 10 – 14 Dbi |
