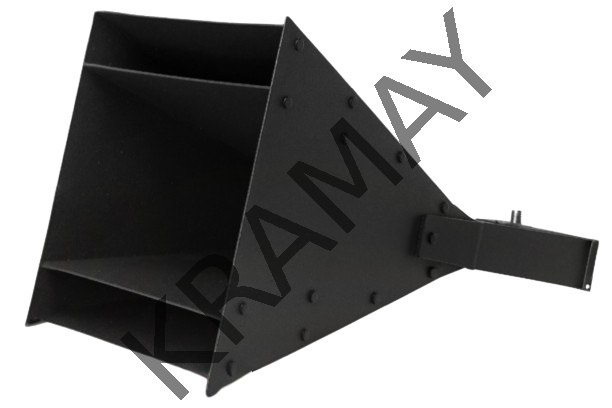

The Immunity Horn Antenna Series Includes The 13Xx Series Tem Horn Antennas And The 14Xx Series Pyramidal Horn Antennas, Each Designed To Meet Rigorous Electromagnetic Compatibility (Emc) Testing Requirements.

The 13Xx Series Is Designed To Produce Uniform Electromagnetic Fields Across a Wide Frequency Range For Close Proximity Immunity Testing In Accordance With Iec/En 61000-4-39 Standard.

• Model 1301 Operates From 380 Mhz To 3 Ghz, With a Vswr Of Less Than 7:1 Between 400 Mhz And 700 Mhz, And Less Than 3:1 From 700 Mhz To 3 Ghz.
• Model 1302 Covers The 3 Ghz To 6 Ghz Range, Maintaining a Vswr Of Less Than 2:1 Throughout.

The 14Xx Series Is Specifically Engineered For High-Field Strength Generation In Automotive Emc Component Testing. These Antennas Can Deliver Pulsed Peak Electric Fields Up To 600 V/m At a Distance Of 1 m From The Horn Aperture. This Performance Is Achieved When The Equipment Under Test (Eut) Is Positioned On a Metallic Test Bench, Leveraging The Antenna’s Optimized Near-Field Characteristics To Produce Intense, Localized Fields.

These Antennas Are Optimized For Performance In Emc Environments Requiring High-Intensity, Broadband Field Generation And Field Uniformity For Compliance Testing. As With All Kramay Products, Custom Designs And Modifications With Different Connector Options Are Available To Meet Unique Customer Requirements.
