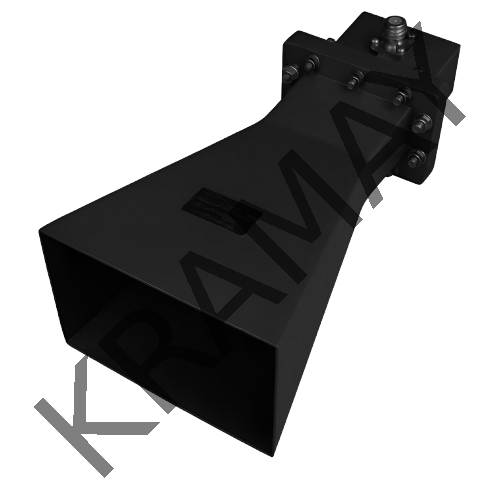

The Octave Horn Antennas Series Is Specifically Engineered For Emissions And Immunity Testing Within The 1 Ghz To 8 Ghz Frequency Range. This Antenna Series Features Linear Polarization, Medium Gain, And a Moderate Half-Power Beamwidth In Both Horizontal And Vertical Planes. It Offers Low Vswr Across Its Recommended Operating Band And Maintains Antenna Factors Within a Tight ±2 Db Variation.

The Broad Octave Bandwidth Is Optimized For Seamless Integration With Octave Bandwidth Traveling-Wave Tube (Twt) Amplifiers, Eliminating The Need To Switch Antennas Throughout The Frequency Range.

Each Antenna Is Supplied With a High-Performance, Low Vswr Type N Coax-To-Waveguide Adapter. While This Adapter Defines The Antenna’s Power-Handling Limits, It Can Be Removed If a Power Source Equipped With Waveguide Output Is Used. Under Such Conditions, Electric Field Strengths Exceeding 10,000 V/m At 10 Meters Can Be Achieved.

The Following List Is Illustrative, Not Comprehensive, With Various Connector Options Available, Including The Waveguide Flanges, To Suit Specific Needs. As With All Kramay Products, Custom Designs And Modifications Can Be Tailored To Meet Unique Customer Requirements.
