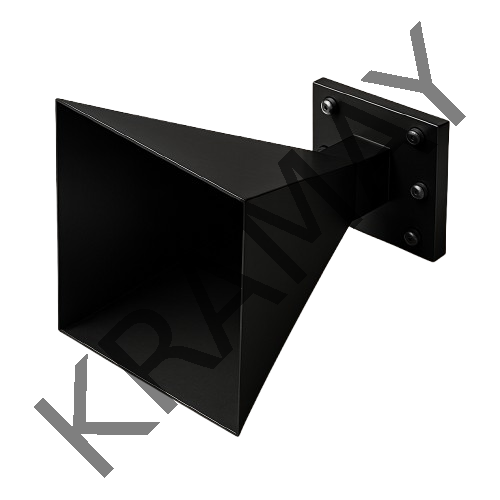

Kramay Offers An Extensive Range Of Pyramidal Standard Gain Horn Antennas, Engineered Across The 1 Ghz To 50 Ghz Frequency Spectrum. These Typically Provide Gain Values Between 15 And 20 Dbi, With Higher Gain Options Available Above 20 Dbi.

Key Features Of The Series Include Linear Polarization, Medium Gain, And a Wide Half-Power Beamwidth (Hpbw) In Both Horizontal And Vertical Planes. Each Model Is Delivered Fully Assembled And Includes a High-Performance, Low Vswr Coax-To-Waveguide Adapter With Varying Connector Types Depending On The Frequency Range And Power Requirements. The Coax-To-Waveguide Adapters Represent The Only Power-Limiting Element In The System And Can Be Removed When Higher Field Strengths Are Required. In Such Cases, The Rf Generator Must Be Equipped With Waveguide Ports. The Antennas Are Versatile, Suitable For Both Transmission And Reception Applications.

The Following List Is Illustrative, Not Comprehensive, With Various Connector Options Available, Including The Waveguide Flanges, To Suit Specific Needs. As With All Kramay Products, Custom Designs And Modifications Can Be Tailored To Meet Unique Customer Requirements.
