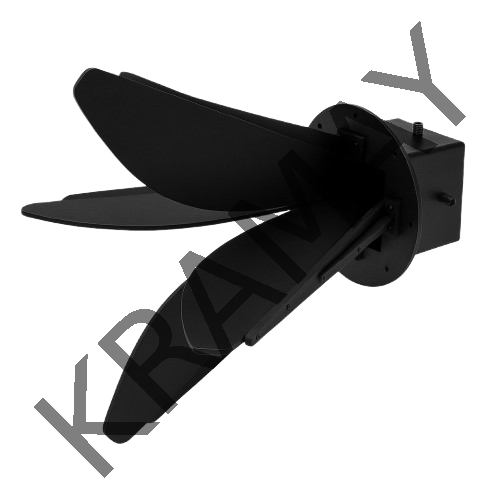

Quad Ridge Horn Antennas
The Quad Ridge Horn Antennas Are Specifically Designed For Antenna Pattern Measurements Across a Wide Frequency Range, From 100 Mhz To 50 Ghz. Each Antenna Features a Dual Linear Polarized Open-Boundary Horn Configuration, Enabling Precise Measurement Of The Principal Field Polarizations Radiated By The Antenna Under Test. Two Orthogonally Positioned Input Connectors Support Simultaneous Measurements Of Horizontally And Vertically Polarized Linear Waves. Additionally, With The Integration Of a 90-Degree Hybrid Phase Shifter, The Antennas Can Also Transmit Or Receive Circularly Polarized Electromagnetic Waves.
The List Below Is Intended As a Representative Sample Rather Than An Exhaustive Catalogue Designed To Accommodate Specific Application Needs. As With All Kramay Products, Custom Designs And Modifications With Different Connector Options Are Available To Meet Unique Customer Requirements.
| Model | Start Frequency | Stop Frequency | Vswr (Typ) | Gain (Typ) |
|---|---|---|---|---|
| 1201 | 100 Mhz | 1 Ghz | 2:1 | 4-15 Dbi |
| 1202 | 400 Mhz | 6 Ghz | 2:1 | 4-15 Dbi |
| 1203 | 800 Mhz | 12 Ghz | 2:1 | 4-15 Dbi |
| 1204 | 1 Ghz | 18 Ghz | 3:1 | 2-15 Dbi |
| 1205 | 2 Ghz | 32 Ghz | 3:1 | 4-15 Dbi |
| 1206 | 4 Ghz | 40 Ghz | 3:1 | 4-15 Dbi |
| 1207 | 18 Ghz | 50 Ghz | 3:1 | 6-13 Dbi |
